Hotel wall mounted IP Phone (PoE) with 1 SIP support

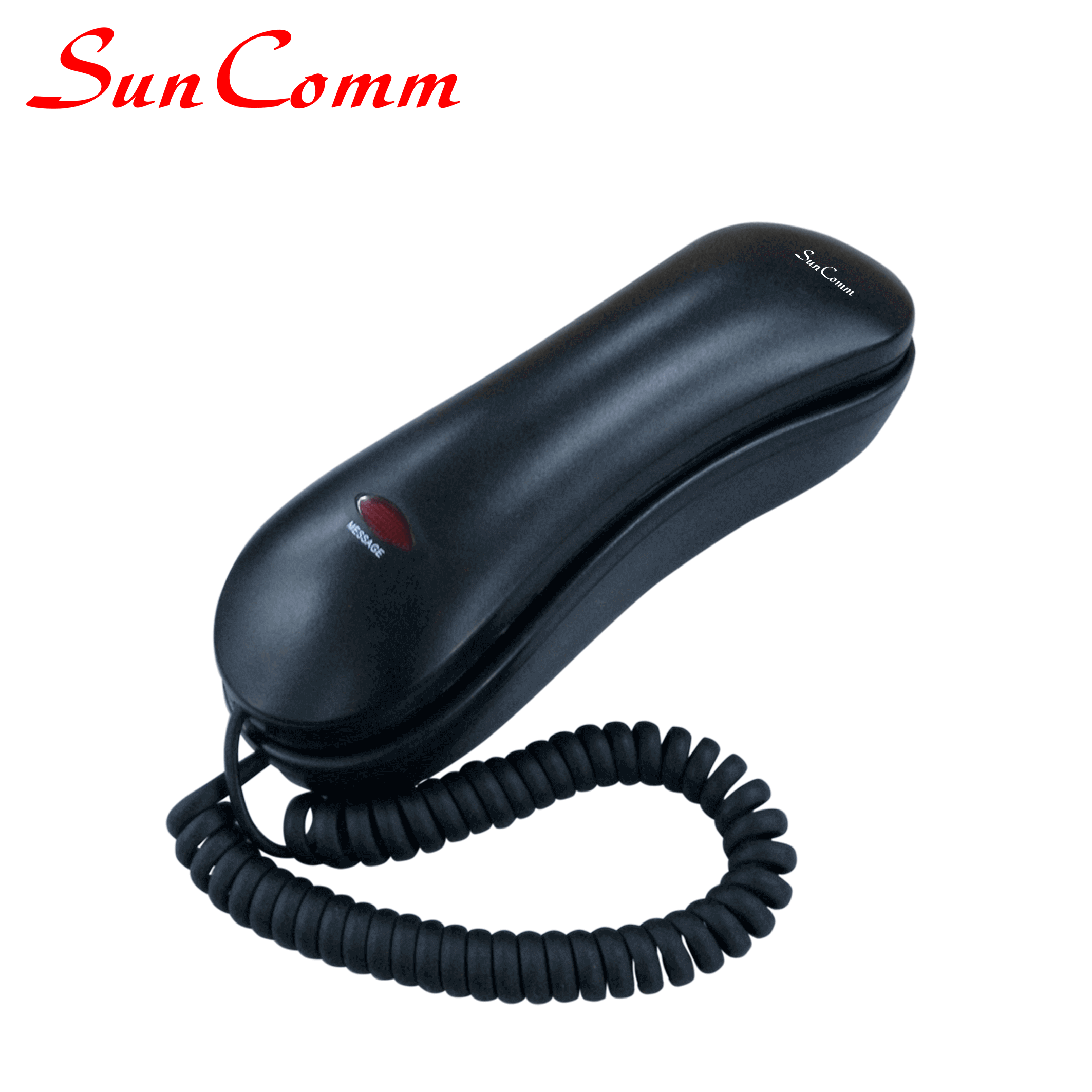

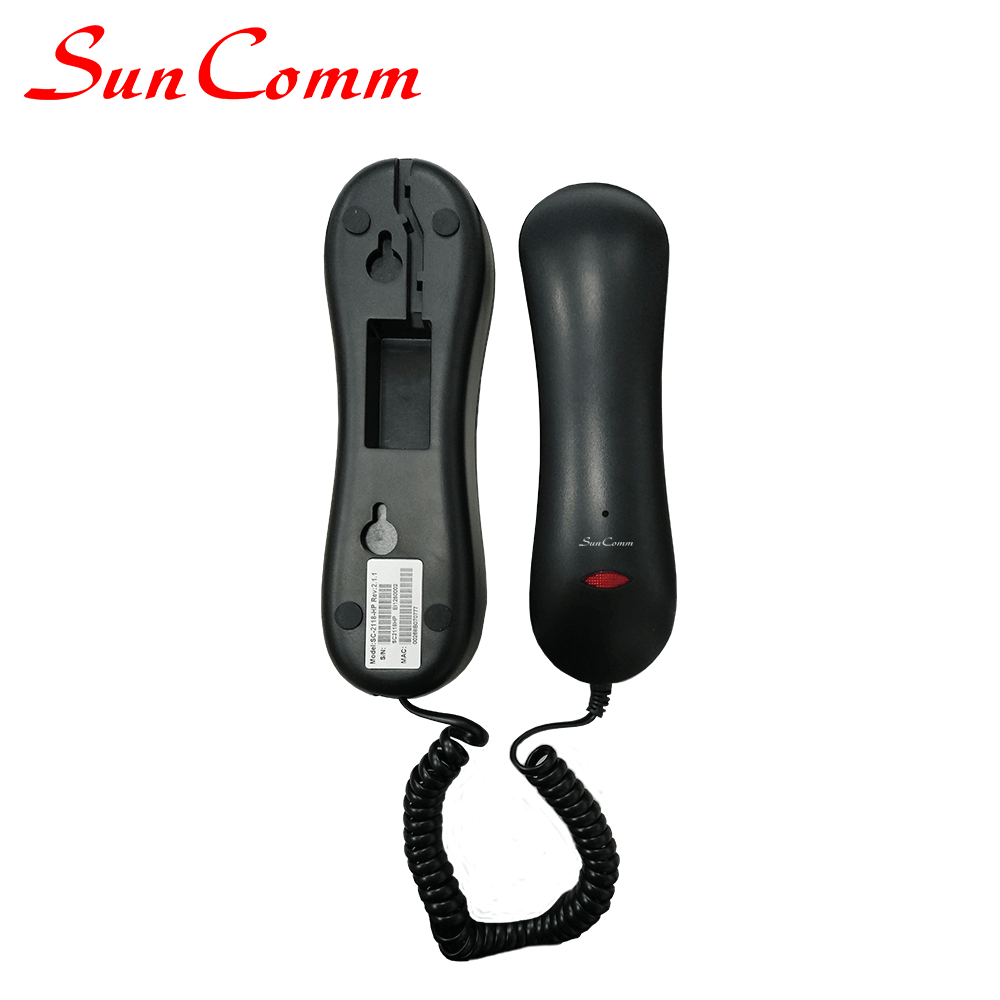

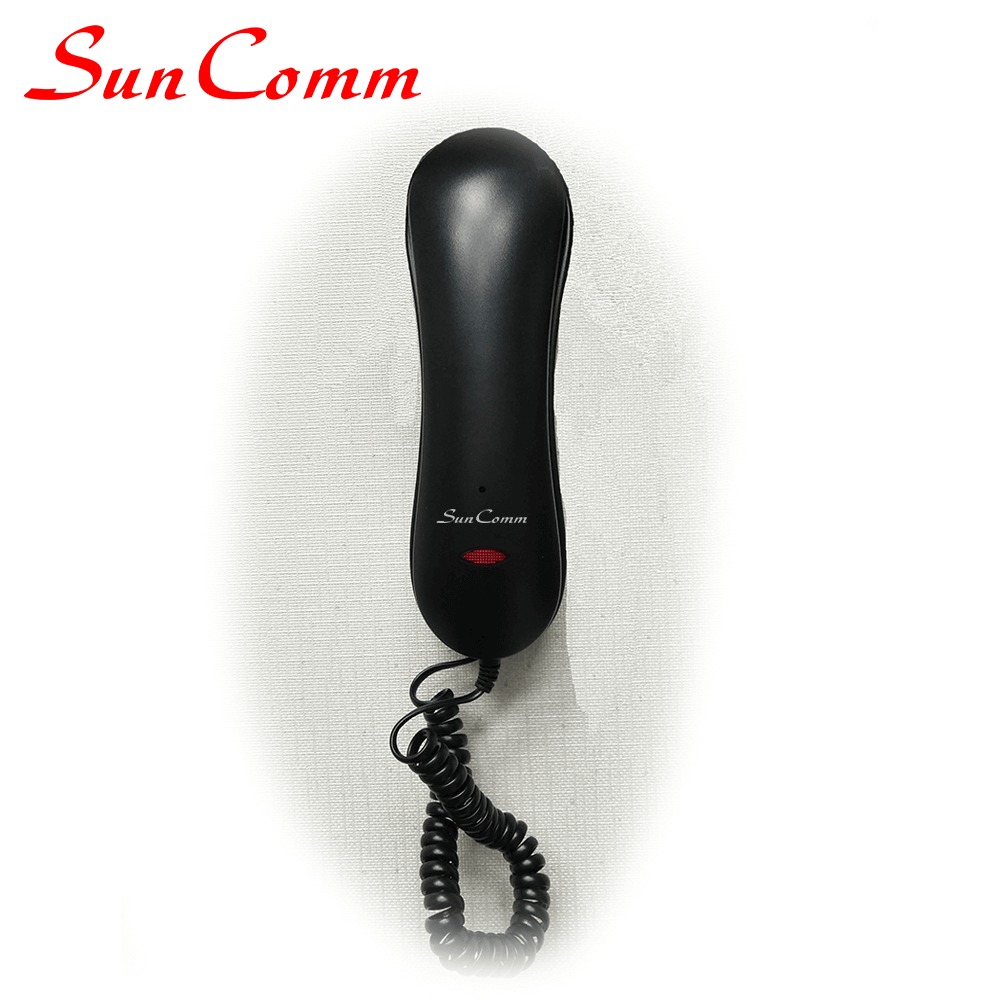

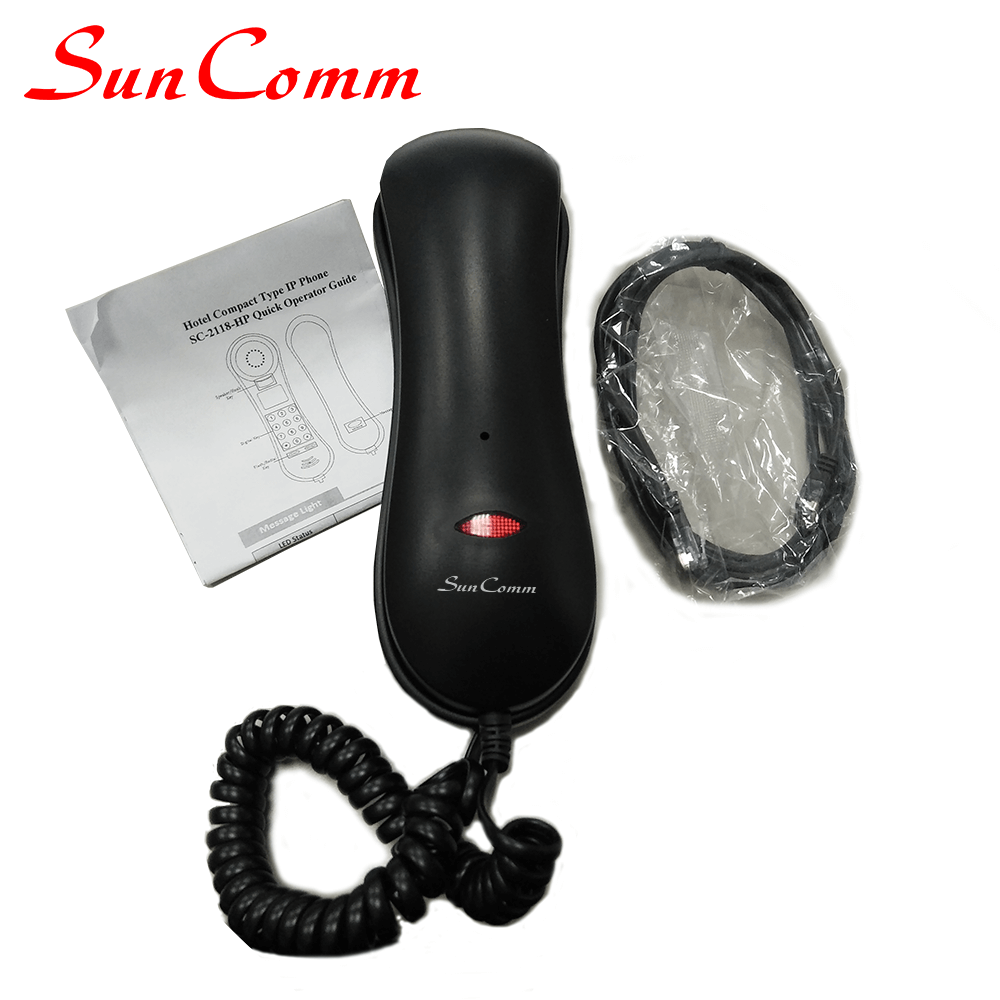

SC-2118-HPE Hotel wall mounted IP Phone is special designed for hotel, business hall and other service places use, which is an easy operational, wall-mountable and desktop IP Phone, Which has fashion appearance, excellent voice quality and powerful function to match an integrated communication platform.

Key Features:

1. 1 SIP and support 3-way conference.
2. 2 way use: Wall-mountable and desktop
3. 3 way conferencing
4. Call hold, Call waiting, Call forward, Call return, Call transfer.
5. HD Voice: HD Codec, HD Speaker.
6. Multi-language, e.g. English, Russian, French etc.
7. IEEE802.3af class 0 (POE).
8. Support HTTP/TFTP/Telnet/Auto provision, and TR069 centralization maintenance.

Phone Features:

• WEB support Multi-Language;
• 1 SIP accounts
• Call hold, Call waiting, Call forward, Call return
• Call transfer (blind/busy/ask)
• Auto-answer, 3-way conferencing
• Tone scheme, web Volume control
• Direct IP call without SIP proxy
• Ring tone selection/import/delete

Codes and Voice Features:

• Wideband Codec: G.722
• Narrowband codec: G.711μ/A, G.723.1
• G.726, G.729a/b, iLBC
• VAD, CNG, AEC, AGC
• Full-duplex,

Network Features:

• SIP v1 (RFC2543), v2 (RFC3261)
• DNS SRV (RFC3263)
• NAT Traversal: STUN mode
• DTMF: In-Band, RFC2833, SIP Info, Auto
• HTTP/HTTPS Web Management
• IP Assignment: Static/DHCP/PPPoE
• TFTP/DHCP/PPPoE client

Advanced Features:

• Flash keys function
• During a call, press the flash key to enter the transferred pattern with dial tone.
• The call will be holding
• When transferring the dialing, pressing the flash key can cancel the transferred function.
• The call still be holding
• Pressing the flash key can recover the on holding call
•

IP PBX System Integration:

• DND ; Forward synchronization
• Intercom, Paging, Music on hold
• Call pick up, Dial Plan,
• Call recording Anonymous call,
• Anonymous call rejection

Security:

• LLDP, VLAN QoS (802.1pq),VPN(L2TP)
• Transport Layer Security (TLS)
• Digest authentication using MD5/MD5-sess
• Secure configuration file via AES encryption
• Admin/User 2-level configuration mode

Management:

• Auto-provision via FTP/TFTP/HTTP/HTTPS
• SNMP V1/2 , TR069 optional
• Configuration: browser/phone/auto-provision
• Trace package and system log export

Physical Features:

• 14 keys, including 10 digital keys
• 1x “*” key, 1x “#” key,1x flash key, 1x redial key
• 1x message LED
• 1x RJ-9 handset port
• 1xRJ45 10/100M Ethernet ports
• Double use(Wall-mountable and desktop)
• Power over Ethernet ,IEEE 802.3af,class 0
• Operating humidity: 10~95%
• Storage temperature: up to 60°C

Package Features:

• Qty/CTN: 36 PCS
• N.W/CTN: 0.274 KG
• G.W/CTN: 0.373KG
• Carton Measurement: 205*67*65mm
