4G IP Handset Phone with 1 SIM WiFi Hotspot Dual WiFi AP 2.4GHz/5.0GHz, FOTA, VoLTE
.png "SunComm SC-9089-IP4G 4G IP Handset Phone with 1 SIM WiFi Hotspot Dual WiFi AP 2.4GHz/5.0GHz, FOTA, VoLTE")

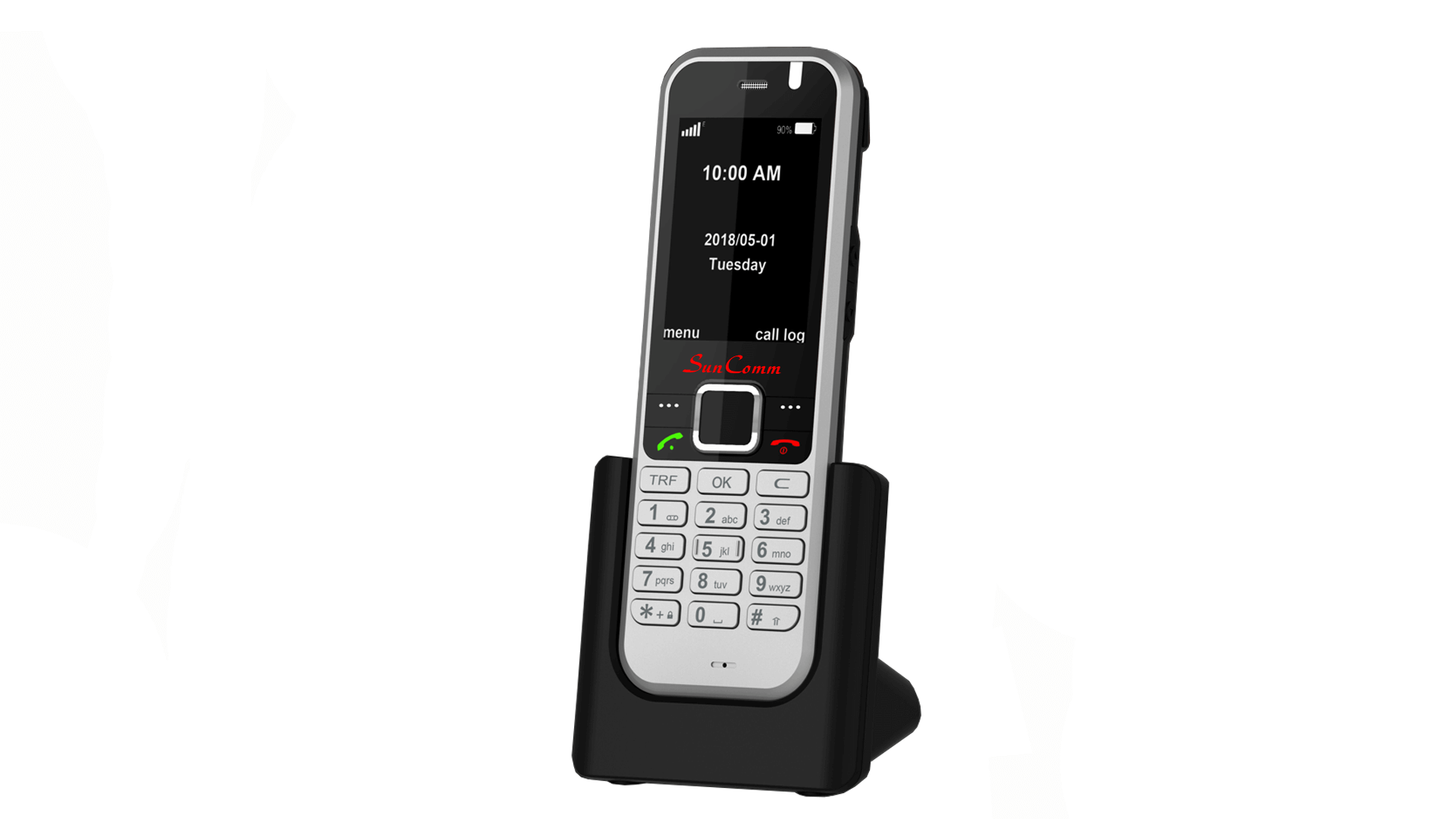

SunComm SC-9089-IP4G4G IP Handset Phone with 1 SIM WiFi Hotspot Dual WiFi AP 2.4GHz/5.0GHz, FOTA, VoLTE
Frequency:
→ FDD: B1(2100MHz) / B3(1800MHz) / B7(2600MHz) / B20(800MHz)
→ FDD: B2 / B4/B7 / 17 (US)
→ TDD: B38(2600MHz) / B40(2300MHz)
Features:
| MAIN FEATURES |
► 2 VoIP/SIP accounts ► Call hold, mute, DND ► One-touch speed dial ► Call forward, call waiting, call transfer ► SMS, emergency call ► 3-way conferencing ► Voice over WCDMA mobile data network ► Voice over WLAN (WiFi) ► Support WLAN (WiFi) roaming between multiple Access Point ► Support FOTA (Firmware over the Air) ► Support VPN (OpenVPN, L2TP, PPTP) ► Support intercom ► Support QoS ► Support Enterprise-grade security and privacy protection |
| AUDIO FEATURES |
► HD voice: HD handset, HD speaker ► Codec: G.722, G.711 (A/μ), G.723, G.729AB, GSM, iLBC, Speex-WB, OPUS ► DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO ► Full-duplex hands-free speakerphone with AEC ► VAD, CNG, AEC, PLC, AJB, AGC |
| NETWORK AND SECURITY |
► Wi-Fi client/ WiFi Hotspot ► WLAN Supports static IP, dynamic IP ► NAT&NAPT with VPN pass-through Virtual Server ► SIP v1 (RFC2543), v2 (RFC3261) ► Automatic receipt of IP address with DHCP Server – delete ► Security through WEP, WPA-PSK, WPA2-PSK, WDS ► Simple handling and management over web interface ► Call server redundancy supported ► NAT transverse: STUN、ICE, TURN mode ► HTTP/HTTPS web server ► Time and date synchronization using SNTP ► QoS: ToS/DSCP; Layer 3 ► Media protocol: RTP/SRTP ► Signaling transport protocol: TCP/UDP/TLS ► Digest authentication using MD5/MD5-sess ► VPN type: OpenVPN, L2TP, PPTP, L2TP/IPSec PSK, ► L2TP/IPSec RSK, IPSec Xauth PSK, IPSec Xauth RSA, ► IPSec ► Hybrid RSA |
| MANAGEMENT | ► Configuration: browser/phone/auto-provisioning/ ► FOTA (Firmware over the Air) ► Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy ► Phone lock for personal privacy protection ► Reset to factory, reboot ► System log |
| Wi-Fi | ► Wi-Fi 2.4G, Support 802.11 b/g/n, Wi-Fi 5GHz (Option), ► Support 802.11 a/ac/n ► Frequency from 2.4GHz to 2.483GHz; 5.15GHz to ► 5.825GHz(option) ► Data rate Speed up to 300Mbps via 2.4G, 600Mbps via 5G ► ＿Channel bandwidth: 20MHz/40MHz via 2.4G,40MHz/80MHz ► via 5G (Option) |
| Power | ► Operating voltage: 100 to 240V AC 50/60Hz ► Adapter: CBS03-0010002/100-240V AC / 5V DC 1A ► Battery: chargeable battery 2000mAh, 3.7V standby time 144-168 hours; Talking Time 8~10 hours. |
| Physical & Environmental |
► Desktop Power Input: 100V-240V AC / Output: 5V DC 1A ► Ambience temperature: 0℃~ 40℃ ► Relative humidity: 10% ~ 90% ► Air pressure: 86 ~ 106kPa ► Dimensions:150X55X22mm ► Weight (handset & charger): 180G ► Collective package (capacity/size): 20 Gift box / CTN |
