4G Mobile Phone with SIP, 1SIM, Dual WiFi 5.0GHz supports FOTA, VoLTE

4G Mobile Phone with SIP, 1SIM, Dual WiFi 5.0GHz supports FOTA, VoLTE

Model:SC-9089-GH4G

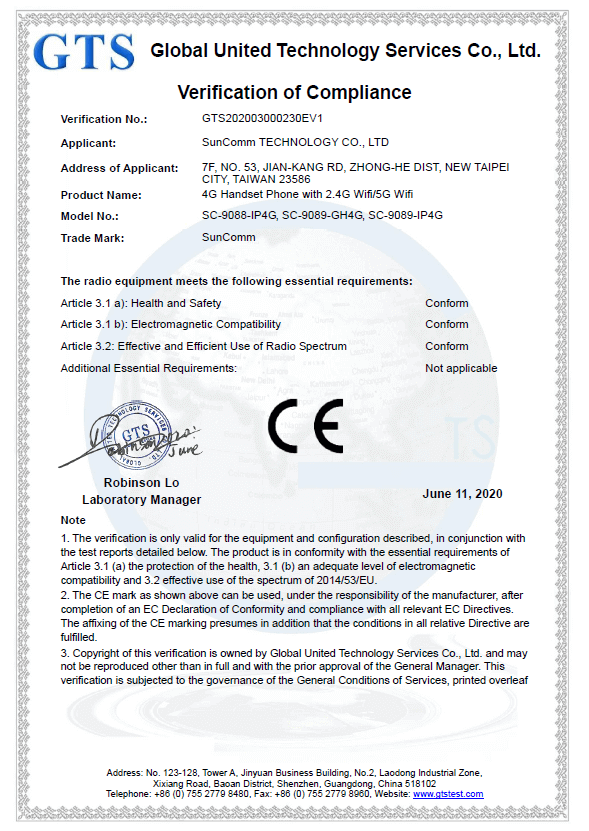

CE
Download Add to inquiry
SunComm SC-9089-GH4G 4G Mobile Phone with SIP, color LCD, 1SIM Wifi Client/ WiFi Hotspot/ Dual WiFi AP 2.4GHz/5.0GHz supports FOTA, VoLTE, CE

SC-9089-GH4G 4G 4G IP Handset Phone/ 4G IP Cordless Phone

Frequency:
→   FDD: B1(2100MHz) / B3(1800MHz) / B7(2600MHz) / B20(800MHz)
→   FDD: B2 / B4/B7 / 17 (US)
→   TDD: B38(2600MHz) / B40(2300MHz)

Features:

MAIN FEATURES

►  2 VoIP/SIP accounts
►  Call hold, mute, DND
►  One-touch speed dial
►  Call forward, call waiting, call transfer
►  SMS, emergency call
►  3-way conferencing
►  Voice over WCDMA mobile data network
►  Voice over WLAN (WiFi)
►  Support WLAN (WiFi) roaming between multiple Access Point
►  Support FOTA (Firmware over the Air)
►  Support VPN (OpenVPN, L2TP, PPTP)
►  Support intercom
►  Support QoS
►  Support Enterprise-grade security and privacy protection
AUDIO
FEATURES


►  HD voice: HD handset, HD speaker
►  Codec: G.722, G.711 (A/μ), G.723, G.729AB, GSM, iLBC, Speex-WB, OPUS
►  DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
►  Full-duplex hands-free speakerphone with AEC
►  VAD, CNG, AEC, PLC, AJB, AGC
NETWORK AND
SECURITY


►  Wi-Fi client/ WiFi Hotspot
►  WLAN Supports static IP, dynamic IP
►  NAT&NAPT with VPN pass-through Virtual Server
►  SIP v1 (RFC2543), v2 (RFC3261)
►  Automatic receipt of IP address with DHCP Server – delete
►  Security through WEP, WPA-PSK, WPA2-PSK, WDS
►  Simple handling and management over web interface
►  Call server redundancy supported
►  NAT transverse: STUN、ICE, TURN mode
►  HTTP/HTTPS web server
►  Time and date synchronization using SNTP
►  QoS: ToS/DSCP; Layer 3
►  Media protocol: RTP/SRTP
►  Signaling transport protocol: TCP/UDP/TLS
►  Digest authentication using MD5/MD5-sess
►  VPN type: OpenVPN, L2TP, PPTP, L2TP/IPSec PSK,
►  L2TP/IPSec RSK, IPSec Xauth PSK, IPSec Xauth RSA,
►  IPSec
►  Hybrid RSA
MANAGEMENT ►  Configuration: browser/phone/auto-provisioning/
►  FOTA (Firmware over the Air)
►  Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
►  Phone lock for personal privacy protection
►  Reset to factory, reboot
►  System log
Wi-Fi ►  Wi-Fi 2.4G, Support 802.11 b/g/n, Wi-Fi 5GHz (Option),
►  Support 802.11 a/ac/n
►  Frequency from 2.4GHz to 2.483GHz; 5.15GHz to
►  5.825GHz(option)
►  Data rate Speed up to 300Mbps via 2.4G, 600Mbps via 5G
►  _Channel bandwidth: 20MHz/40MHz via 2.4G,40MHz/80MHz
►  via 5G (Option)
Power ►  Operating voltage: 100 to 240V AC 50/60Hz
►  Adapter: CBS03-0010002/100-240V AC / 5V DC 1A
►  Battery: chargeable battery 2000mAh, 3.7V standby time
       144-168 hours; Talking Time 8~10 hours.
Physical &
Environmental
►  Desktop Power Input: 100V-240V AC / Output: 5V DC 1A
►  Ambience temperature: 0℃~ 40℃
►  Relative humidity: 10% ~ 90%
►  Air pressure: 86 ~ 106kPa
►  Dimensions:150X55X22mm
►  Weight (handset & charger): 180G
►  Collective package (capacity/size): 20 Gift box / CTN



Packing:
