WiFi IP phone with 3 SIP LINE

WiFi IP phone with 3 SIP LINE

SC-2168-WP is a highly innovative based wireless SIP VoIP phone.
It can perfectly satisfy with all kinds of the businessman communication that can definitely improve working efficiency and sense.
It is highly suitable for SMEs, Home Office and ISP applications.
Add to inquiry

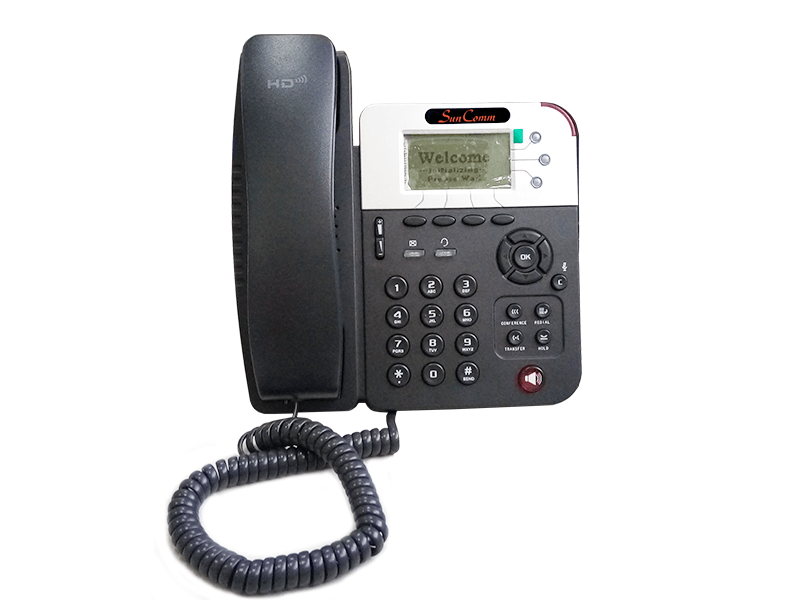

SunComm SC-2168-WP Desktop WiFi VoIP Phone with 3 SIP LINES Wireless IP Phone 5.8GHz

Key Features:


  • Wireless working frequency 5.8GHz.
  • 2.4” 132*64-pixel Graphical LCD with backlight.
  • HD Voice: HD Codec, HD Speaker, HD Handset.
  • Multi-language: Chinese, English, French, Russian, etc.
  • One standard (42.5°) level bracket and wall-mountable.
  • 3 SIP accounts and support three-way conference, SMS.
  • 2xLAN, PoE (option), 1xRJ9Headset.
  • XML/LDA, Contact Search.
  • Auto-provision, HTTP/TFTP/FTP, Tr069.
  • Support 15 paperless programmable keys.


Phone Features

3 SIP accounts, Hotline

Call hold, Call waiting, Call forward, Call return

Call transfer (blind/busy/ask)

Caller ID display, Redial, Mute, DND

Auto-answer, 3-way conferencing

Speed dial, SMS, Voicemail

Message Waiting Indication LED

Tone scheme, Volume control

Direct IP call without SIP proxy

Ring tone selection/import/delete

Phonebook (local up to 1000 entries)

Black list, Hand-free indicator.

Call history: dialed/received/missed (100 -entries); One-key back (C)

Multi-Language (2aB/abc/ABC/123)

Soft keys programmable, Supports PC control

Support switching SIP server & Second server

Advanced Features

XML Phone Book search and input & output

Enterprise phone book(800 entries)

LDAP phone book

Aution URL & Active URI

Functions customizable keys

XML Browser

IP PBX System Integration

Busy lamp field (BLF), BLF list

Bridged line appearance (BLA)

DND & Forward synchronization

Intercom, Paging, Music on hold

Call pickup, Dial Plan, Call recording

Codes and Voice Features

Wideband Codec: G.722

Narrowband codec: G.711μ/A, G.723.1

G.726, G.729AB,iLBC

VAD, CNG, AEC, AGC, Full-duplex,


802.1x, VLAN QoS (802.1pq), SRTP

Transport Layer Security (TLS)

Digest authentication using MD5/MD5-sess

Secure configuration file via AES encryption

Encryption for configuration file

Phone lock for personal privacy protection

Admin/User 2-level configuration mode , LLDP, CDP

L2TP VPN tunneling protocol - added

Network Features


SIP v1 (RFC2543), v2 (RFC3261)

SIP connection: Proxy mode & Peering Points mode;  IPV6 DNS SRV (RFC3263);

SRTP voice encryption(RFC3711)

Redundant server support

NAT Traversal: STUN mode

DTMF: In-Band, RFC2833, SIP Info, Auto

HTTP/HTTPS Web Management

IP Assignment: Static/DHCP/PPPoE

Bridge/Router mode for PC port


Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server

Layer 3 ToS, DSCP


Auto-provision via FTP/TFTP/HTTP/HTTPS

SNMP V1/2 , TR069

Configuration: browser/phone/auto-provision

Trace package and system log export

Physical Features

2.4”132x64 graphic LCD; 34 keys including 2 programmable keys; 1xRJ9 headset port; 2xRJ45 10/100M Ethernet ports;


Line keys with LED indicator: 3

LED for call and message waiting indication;

Dual-color (red or green) illuminated LEDs for line status information;

42.5° bracket and wall-mountable

Power adapter: AC 100~240V input and

DC 5V/1A output;

Power over Ethernet ,IEEE 802.3af,class 0

Power consumption: 1.4-2.6W

Net weight:


Operating humidity: 10~95%

Storage temperature: up to 60°C

Package Features

Qty/CTN: 10 PCS

N.W/CTN: 7.58kg

G.W/CTN: 8.8kg

Measurement: 0.068CBM(±0.5%)

Carton Meas: 455x390x222mm
