SunComm Basic IP Phone, 2 Line 2 SIP, Entry-level VoIP Phone, Office IP Phone

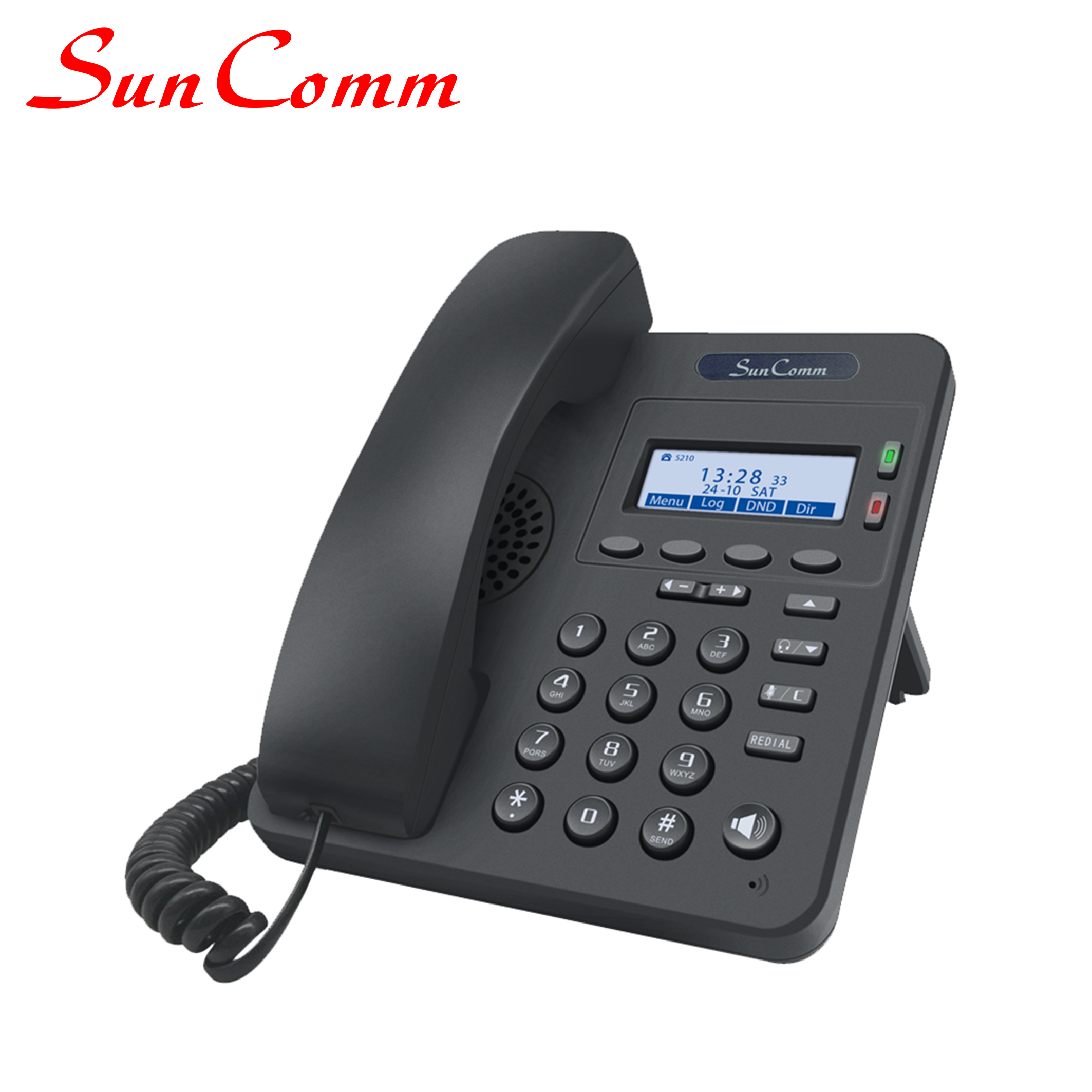

SC-2010-IP is a Basic IP phone. It has 128*64 HD graphic LCD up to 4 line display; it also has clear Sound Quality, unique art design, 5 programmable keys, and friendly user interface to satisfy users communication needs

Key Features:

  • Support 2 lines;
  • Support 38.5°demountable bracket;
  • Support 5 programmable keys(2 Line keys,Up&Down keys, Redial key);
  • Support Multi-language, e.g.: Chinese, English, French, Russian, Italian and etc.
  • 2*10/100M Ethernet ports, POE is optional;
  • Auto-provision, HTTP/HTTPS/TFTP/FTP;

Optional Feature:

  • TR069,IPv6,HTTPS web management,802.1x,OPEN VPN

Phone Features:

  • 2 SIP accounts, MWI(Line1)
  • Caller ID display, Redial, Mute, DND
  • Direct IP call without SIP proxy
  • Call hold, Call waiting, Call forward, Call return; Call transfer (blind/busy/ask)
  • Auto-answer, 3-way conferencing
  • Speed dial, SMS, Voicemail
  • Tone scheme, Volume control
  • Ring tone selection/import/delete
  • Black list, Hand-free indicator.
  • Call history: dialed/received/missed;
  • Soft keys programmable, Supports PC control
  • Multi-Language:Chinese,English,French,Russian,Italian,Polish,Portuguesa,Portuguesa-Brasil,Spanish,Turkish

Advanced Features:

  • LDAP phone book
  • 5 programmable keys
  • XML Phone Book search and input & output
  • Enterprise phone book(800 entries)
  • Personal Phonebook(300 entries)

IP PBX System Integration:

  • DND & Forward synchronization
  • Busy lamp field (BLF), BLF list
  • Network conference, Distinctive ring tone
  • Bridged line appearance (BLA)
  • Intercom, Paging, Music on hold
  • Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection

Network Features:

  • SIP v1 (RFC2543), v2 (RFC3261)
  • SIP connection: Proxy mode & Peering Points mode;
  • SRTP voice encryption(RFC3711)
  • Redundant server support
  • NAT Traversal: STUN mode
  • DTMF: In-Band, RFC2833, SIP Info, Auto
  • HTTP Web Management
  • IP Assignment: Static/DHCP/PPPoE
  • Bridge/Router mode for PC port
  • TFTP/DHCP/PPPoE client
  • Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server


  • VLAN QoS (802.1pq), SRTP
  • Transport Layer Security (TLS)
  • Digest authentication using MD5/MD5-sess
  • Secure configuration file via AES encryption
  • Encryption for configuration file
  • Phone lock for personal privacy protection
  • Admin/User 2-level configuration mode , LLDP, CDP
  • L2TP VPN tunneling protocol - added

Codes and Voice Features:

  • Wideband Codec: G.722
  • Narrowband codec: G.711μ/A, G.726, G.729AB,iLBC
  • VAD, CNG, AEC, AGC, Full-duplex,


  • Auto-provision via FTP/TFTP/HTTP/HTTPS
  • Configuration: browser/phone/auto-provision
  • Trace package and system log export

Physical Features:

  • 128 x 64 graphic LCD with back light
  • 25 keys, including 5 programmable keys,
  • 2 LEDs: 2* account lights, including MWI(L1)
  • 1* RJ-9 handset port
  • 1* RJ-9 headset port
  • 2xRJ-45 10/100M Ethernet ports
  • Power adapter: AC 100~240V input and
  • DC 5V/1A output
  • POE IEEE 802.3af,class 0 (Option)
  • Power consumption: 1.5W
  • Net weight: 0.62kg
  • Dimension: 180x157x33mm
  • Operating humidity: 10~95%
  • Storage temperature: up to 60°C
