IP PBX with 50-100 extensions, 30 simultaneous call

IP PBX with 50-100 extensions, 30 simultaneous call

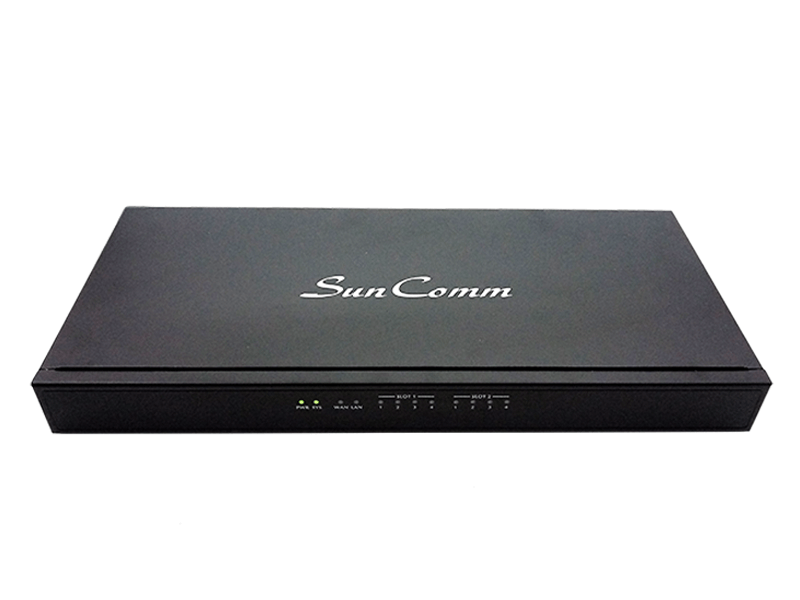

SC-5030V IP PBX with 50-100 extensions, 30 simultaneous call

  • SC-5030V-3G4 with 3G 4SIM
  • SC-5030V-44 with 4FXS+4FXO
  • SC-5030V-GSM4 with 4GSM+4FXO
  • SC-5030V-8S with 8FXS
  • SC-5030V-8O with 8FXO
  • SC-5030V-GSM2 with GSM 2SIM
  • SC-5030V-GSM4 with GSM 4SIM

SC-5030V IP PBX series is the ideal solution for SMBs with up to 50-100 extensions. Adopting an innovative modular design, means it is very convenient to add telephony ports to expand the Phone system. SC-5030V IP PBX series supports industry standard SIP trunks, analog PSTN trunks (FXO module), mobile GSM trunks (GSM module), analog telephone stations (FXS module), as well as digital trunks (E1/T1 module).

It is an affordable, scalable, interoperable, secure and reliable solution which provides PABX functions such as automated attendant and voicemail, remote extensions, remote office connection, conference bridge, call recording, call detail records (CDR), automatic call distribution (ACD), unified messaging (voice mail to email), and many more features.


Working frequency:

Quad-band: GSM850 MHz/ EGSM 900 MHz/ DCS 1800 MHz/ PCS 1900 MHz

3G WCDMA: UMTS 850MHz/ UMTS 900MHz/ UMTS 1900MHz/ UMTS2100MHz

Modules List for 2 Slots use:


Highlights & Features:

  • HD Voice Codec G.722 for perfect voice quality
  • Fax to Email/Email to Fax
  • Voicemail to Email
  • Console Port for easy management
  • USB Port for expanded storage or 3G network connectivity
  • Hardware Echo Cancellation module for great and smooth communication
Call features

Call Back
Call Forward
Call Group
Call Hold
Call Paging and Intercom
Call Park
Call Pickup
Call Queue
Call Recording
Call Routing
Blind Transfer
Attended Transfer
Call Waiting
Caller ID
Dial by Name
Music On Hold/Transfer
3-Way Conference
Video Calls

PBX features

Black List
BLF (Busy Lamp Field)
CDR (Call Detailed Record)
Conference Room (3 Rooms) Call Monitoring
DID (Direct Inward Dialing Number)
DISA (Direct Inward System Access)
Distinctive Ringtone
DND (Do Not Disturb)
DNIS (Dialed Number Identification Service)
Feature Codes
FOP (Flash Operation Panel)
Status Monitoring Follow Me
IVR (Interactive Voice Responses)
Mobility Extension
Multi-Language Prompts Multi-Language GUI
One Touch Recording
Phone Book
Phone Provisioning
Pin Set
Record File Download
SIP Register with UDP/TCP/TLS
SIP Trunk
Skype for SIP
Smart DID
Speed Dial Spy
SRTP (Secure Realtime Transport Protocol)
T.38 Fax (Pass-through)
Time Based Rule
Virtual Fax
Voicemail & Voicemail to Email

Network features DDNS Client DHCP Server
IP Assignment (PPPoE/DHCP/Static) SNMP v1/v2
Static Route Table
Trouble Shooting (Ping/Traceroute) VPN Client (N2N/L2TP/PPTP/OpenVPN)
VPN Server (PPTP/L2TP/OpenVPN, Up to 10 Users)
Security Refuse SIP Register DoS
Refuse Abort Invite DoS
Refuse SSH Login DoS Firewall
Logs PBX Log
Web Access Log
PBX Debug Log
Hardware Interfaces 1 Reset Button
1 Power Interface
1 Ethernet Interface
1 Console Interface
1 USB Interface
1 Interface for Optional
Hardware Echo Cancellation Module 1 Interface for Optional UMTS Module

Hardware Specifications

Processor: DualCore 500MHz
Storage: 4GB SD Card
Power Supply: Input AC 100~240V, 50/60Hz;
Output DC 12V/2A
Environment Working Temperature: 0 ~ 40°C
Storage Temperature: -20 ~ 55°C
Humidity: 5 ~ 95% Non-condensing
Packing Dimension: 410 × 220 × 85mm
Weight/Unit: 2.2kg
Unit/Carton: 6
Units Weight/Carton: 13.5kg
