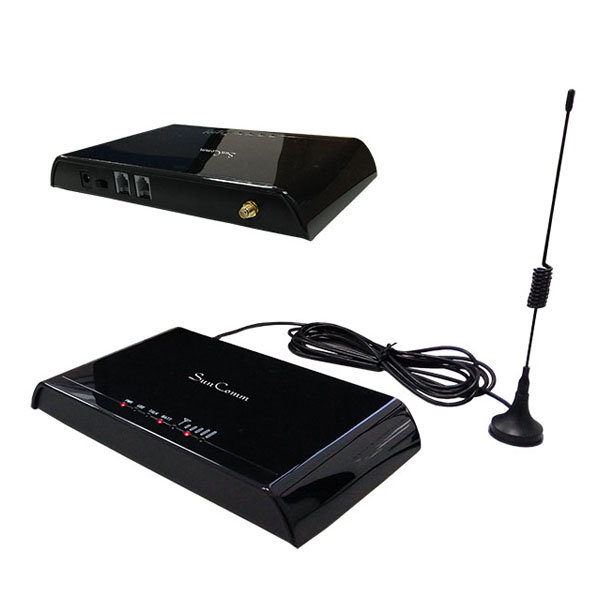

SunComm SCG-1Q-4G 4G Fixed Wireless Terminal (FWT) with 4G 1SIM, 2 x RJ-11 for 4G - Analog network connection, Alarm system, VoLTE

1. General Description:
SCG-1Q-4G Fixed Wireless Terminal is designed for 4G LTE to Analog connection (single port, insert 4G 1SIM card). The device can produce a FXS line to allow an Analog phone to be connected and used just like a local Landline (PSTN) except your calls will go out via 4G network. This device can both receive and make calls.

The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call; to connect PBX for call extensions; to connect billing systems for public phone use; to connect VoIP FXO gateway to realize VoIP call termination; to connect alarm system for security purpose, etc.
It is not a VOIP gateway, nor a GSM+VOIP Gateway, It is a 4G Fixed Wireless Terminal that produces an analog FXS phone line.

2. Technical Specifications:
Module employed:
EC-25, EC-20 (please tell us the 4G Band you need before place an order so that we can choose the suitable module for you)

For Australia/New Zealand/Taiwan/Brazil

LTE FDD: B1(2100MHz) / B2(1900MHz) / B3(1800MHz) / B4(1700MHz) / B5(850MHz) / B7(2600MHz) / B8(900MHz) / B28(700MHz)
LTE TDD: B40(2300MHz)
WCDMA: B1 / B2 / B5 / B8
GSM: B2 / B3 / B5 / B8
LTE FDD: B1 / B3 / B5 / B7 / B28
WCDAM: B1 / B5
LTE FCC: B3 / B7 / B28

For Europe/Middle East/Africa/Korea/Thailand
LTE FDD: B1 / B3 / B5 / B7 / B8 / B20
LTE TDD: B38 / B40 / B41
WCDMA: B1 / B5 / B8
GSM: B3 / B8

For North America
LTE FDD: B2 / B4 / B12
WCDMA: B2 / B4 / B5
LTE FDD: B4 / B13

For Japan

LTE FDD: B1 / B3 / B8 / B18 / B19 / B26
WCDAM: B1 / B6 / B8 / B19

Air interface standard:
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Transmitting power<3W
Color: White / Black (optional)
AC-Adapter interface: Input: AC 110~240VAC  50~60Hz
                                   Output: 12DC 1A
Output Power: 23dBm±2dB

AC-Adapter type: EU, US, AU, British can be optional

3. Functions & Features:
1) SIM card supported (1.8V, 3V)
2) Caller ID display
3) Employ industrial module to make
4) Simple to install and easy to maintain
5) Steady module and reliable design ensures good performance
6) Provides optimized circuit directly connecting the exchange device for extensions
7) Compatible to most telephones, PBX device.
8) Strong signals with high gain antenna
9) Attractive plastic casing
10) It is a 1 port 4G FWT which has 2 RJ-11 outputs for extensions;
11) It can connect with ordinary telephone set, PBX, VOIP Gateway, Billing meter etc.
12) Provides reversal polarity signal for metering
13) No noise and clear voice
14) Suitable for wide voltage range and low power consumption
15) Suitable for all kinds of weather and environment
16) Locking PIN / network (optional)
17) back up Li-ion battery (Optional), talking time: 2 hours, standby time: 10 hours

4. Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >2.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA

5. Packing List:
G.W: 0.75kg per unit. 20pcs/Carton, 16kg /Carton
Carton Box Size: 55cmX34.5cmX32.5cm

Name Quantity Remark
SCG-1Q-4G FWT 1pcs 4G/3G/2G
AC- adapter 1pcs AC-110-240V, DC12V/1A
Antenna 1pcs Magnetic Antenna with 3m cable
User's Manual 1pcs English
