3G Fixed Wireless Terminal with 3G 1SIM, 2 RJ-11 for 3G - Analog network connection, VoLTE

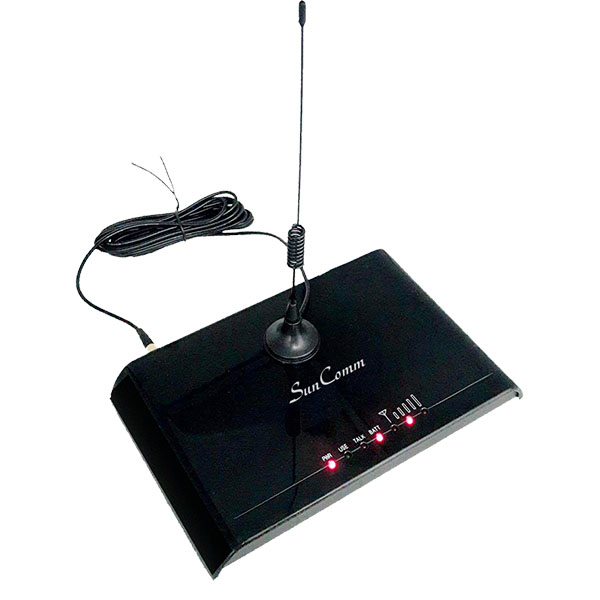

SCG-1Q-3G 3G Fixed Wireless Terminal (FCT/ FWT) is a WCDMA to Analog Converter(single port, insert 1 sim card only), the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network. It can both receive and make calls.
The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call; to connect PBX for call extensions; to connect billing systems for public phone use; to connect VoIP FXO gateway to realize VoIP call termination; to connect alarm system for security purpose, etc. It is not a VOIP gateway, nor a GSM+VOIP gateway, It is a GSM Fixed Wireless Terminal that produces an analog FXS phone line .
SCG-1Q-3G Features:
1) It is a 1 port WCDMA FWT which has 2 RJ-11 outputs for extensions
2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc.
3) Employ industrial module to make
4) Simple to install and easy to maintain
5) Steady module and reliable design ensures good performance
6) Provides optimized circuit directly connecting the exchange device for extensions
7) Compatible to most telephones, PBX device.
8) Strong signals with high gain antenna
9) Attractive plastic casing
10) SIM card supported (1.8V, 3V)
11) Caller ID display
12) Provides reversal polarity signal for metering
13) No noise and clear voice
14) Suitable for wide voltage range and low power consumption
15) Suitable for all kinds of weather and environment
16) Locking PIN / network (optional)
Specifications:
1. Air interface standard:
◇ SCG-1Q-3G is a wireless module which is designed for the global market. It is a consumptive product; it can be designed in many kinds of applications which can work on HSPA/UMTS/EDGE/GPRS/GSM network.
2. SCG-1Q-3G support the Bands as the following:
◇ 3G Tri-Band UMTS/HSDPA/HSUPA (WCDMA/FDD): 850/1900/2100 MHz
◇ 2G Quad-Band GSM: 850/900/DCS1800/PCS1900 MHz
◇ Phone interface: supply RJ-11 Phone Interface
◇ Hanging voltage: 45V
◇ Picking off voltage: 30mA / 41mA
◇ Dialing tone Frequency: 450Hz
◇ Antenna interface: Antenna amplifying>2.5db
◇ Sensitivity:<-104DBM
◇ Transmitting power<3W
◇ Color: White /Black (optional)
◇ AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
◇ Output: 12DC 1A.
◇ AC-Adapter type: EU, US, AU, British can be optional
3. Operation Circumstance:
◇ Operation temperature: -10c~60C
◇ Storage temperature:-20C~70C
◇ Operation humidity:45%-95%
◇ Atmosphere pressure:86-106Kpa
◇ Environment noise: <60DB
◇ Transmitting Power:2W
◇ Sensitivity: <-104dbm
◇ Antenna Amplifying: >2.5db
◇ Dialing frequency: 450Hz
◇ Hanging voltage: 45V
◇ Picking current: 30mA/41mA
