3G Fixed Wireless Terminal with 3G 1SIM, 2 RJ-11 for 3G - Analog network connection, LCD, Caller ID

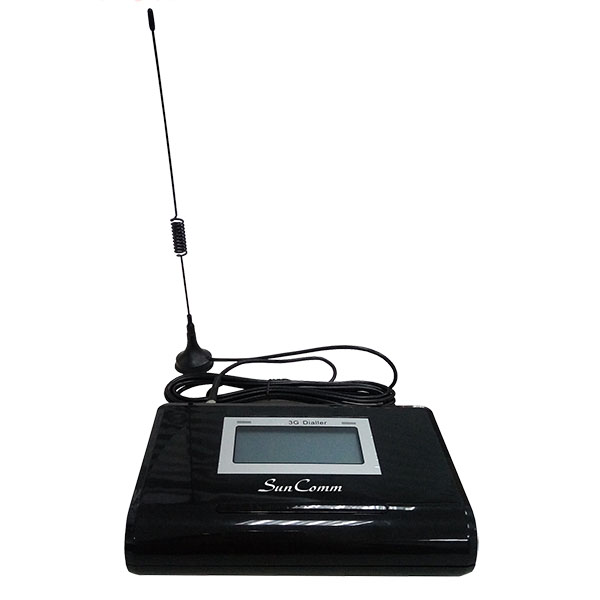

SC-369-3GT 3G Fixed Wireless Terminal (FWT)

<sup>3G WCDMA 900/2100MHz compatible GSM 900/1800MHz
3G WCDMA 850/1900MHz compatible GSM 850/1900MHz
3G WCDMA 850/2100MHz compatible
GSM 850/900/1800/1900MHz

Application areas:
Remote country, mountains, dwelling house with weak signals, public telephone shops, offices, removable places such as ships, trains, and Long distance buses etc...

Usage:</sup>

<sup>►  Connect the RJ-11 FXS line to connect ordinary telephone set for voice call
►  Connect PBX for call extension
►  Connect billing systems for public phone use
►  Connect VoIP gateway to utilize VoIP call termination
►  Connect alarm system for security purpose

Features:</sup>

<sup>1.    1 channel 3G Gateway which has 2 RJ-11 ports for extensions
2.    It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc.
3.    Auto card-locking and net-locking
4.    Employ industrial module to make
5.    SIM card supported 1.8V/3V
6.    Caller ID; LCD display time, date, and battery capacity
7.    DTMF, FSK dialing mode optional
8.    Bell signal
9.    Polarity reverse
10.    Back up Li-ion battery optional, 3.7V 750mAh
11.    3 meters SMA antenna
12.    Working status and signal strength by LED indicator
13.    IMEI number changeable by command
14.    Supports modem mode
15.    Automatically connect to IP network when dialing long distance optional
16.    Dialing number block optional
17.    Incoming number block optional
18.    Volume, time and date adjustable

Technical Specifications:</sup>

<sup>1.    Frequency:
       3G WCDMA 900/2100MHz compatible GSM 900/1800MHz
       3G WCDMA 850/1900MHz compatible GSM 850/1900MHz
       3G WCDMA 850/2100MHz compatible GSM 850/900/1800/1900MHz
2.    Antenna increment: all directions: 5.0db; Certain/Selection: 12db
3.    Phone interface: supply RJ-11 Phone Interface
4.    Hanging voltage: 45V
5.    Picking off voltage: 30mA / 41mA
6.    Dialing tone Frequency: 450Hz
7.    Antenna amplifying>2.5db
8.    Sensitivity:<-104db
9.    Transmitting power<3W
10.    Color: White or black optional
11.    AC-Adapter interface: Input: AC 110~240V,50~60Hz; Output: DC 5V, 1A
12.    AC-Adapter type: EU,US, AU,UK etc. optional
13.    Standby 120 hours
14.    Talking time: 4 hours subject to network signal strength
15.    Battery charging time: 12 hours; first time 24 hours
16.    Power consumption: static≤25mA; emission≤500mA
17.    Peak power consumption: 0.25W/0.5W
18.    Receive sensitivity: -104db

Working environment:</sup>

<sup>1.    Operation temperature: -10c~60C
2.    Storage temperature:-20C~70C
3.    Operation humidity:45%-95%
4.    Atmosphere pressure:86-106Kpa
5.    Environment noise: <60DB
6.    Transmitting Power:2W
7.    Sensitivity: <-104dbm
8.    Antenna Amplifying: >2.5db
9.    Dialing frequency: 450Hz
10.    Hanging voltage: 45V
11.    Picking current: 30mA/41mA
12.    Resolution: 128*64 pixels
13.    LCD size: 67*30mm
14.    Software upgrade: mini usb cable
15.    SMS alert: optional

Packing:</sup>

^{1.    Base: 1pc
2.    AC Adapter: 1pc
3.    User manual: 1pc
4.    Battery: 1pc, optional
5.    3 meter antenna: 1pc
6.    20 pc / carton
7.    Carton size: 37.5*26.5*42.5cm
8.    G.W.: 10.50Kg / carton}
