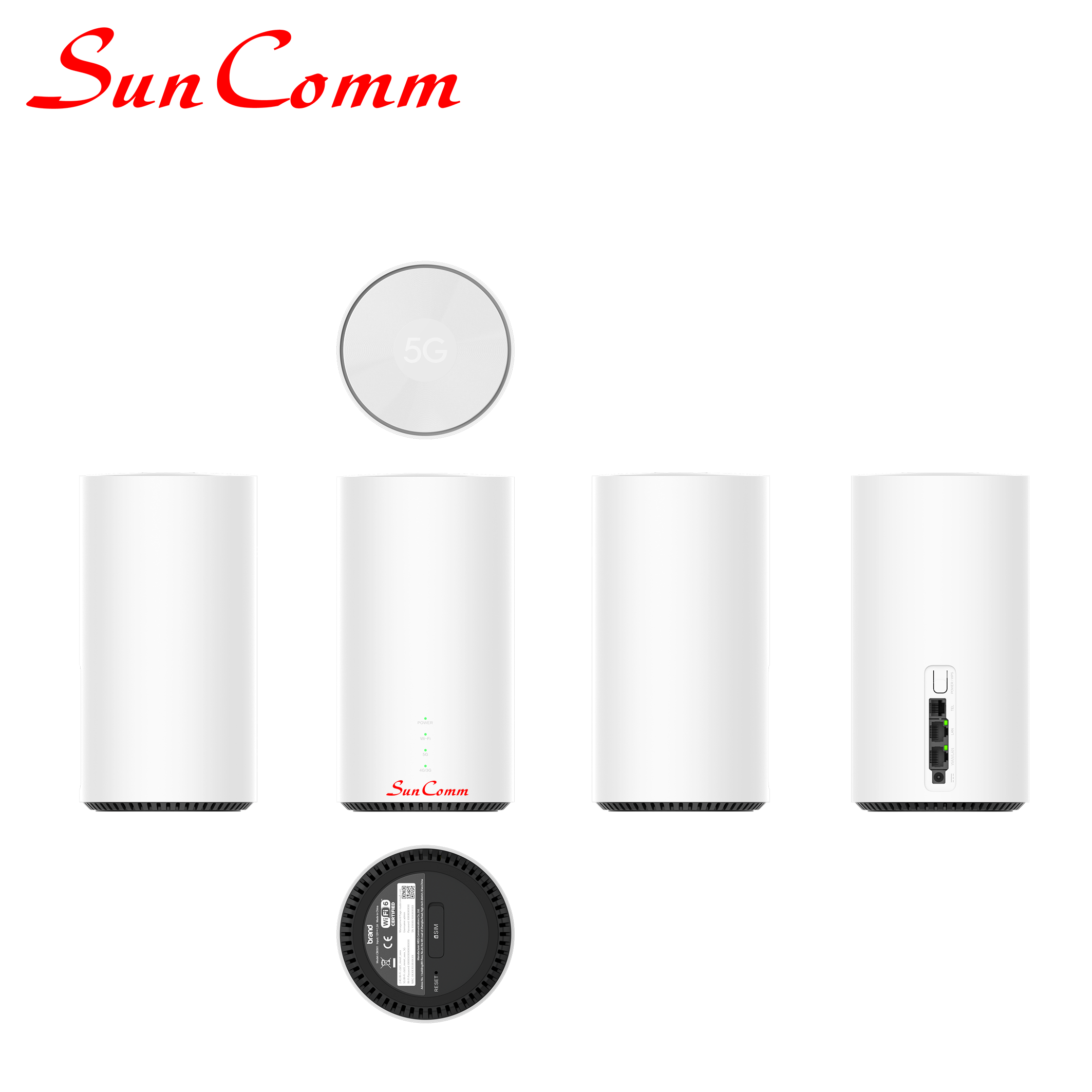

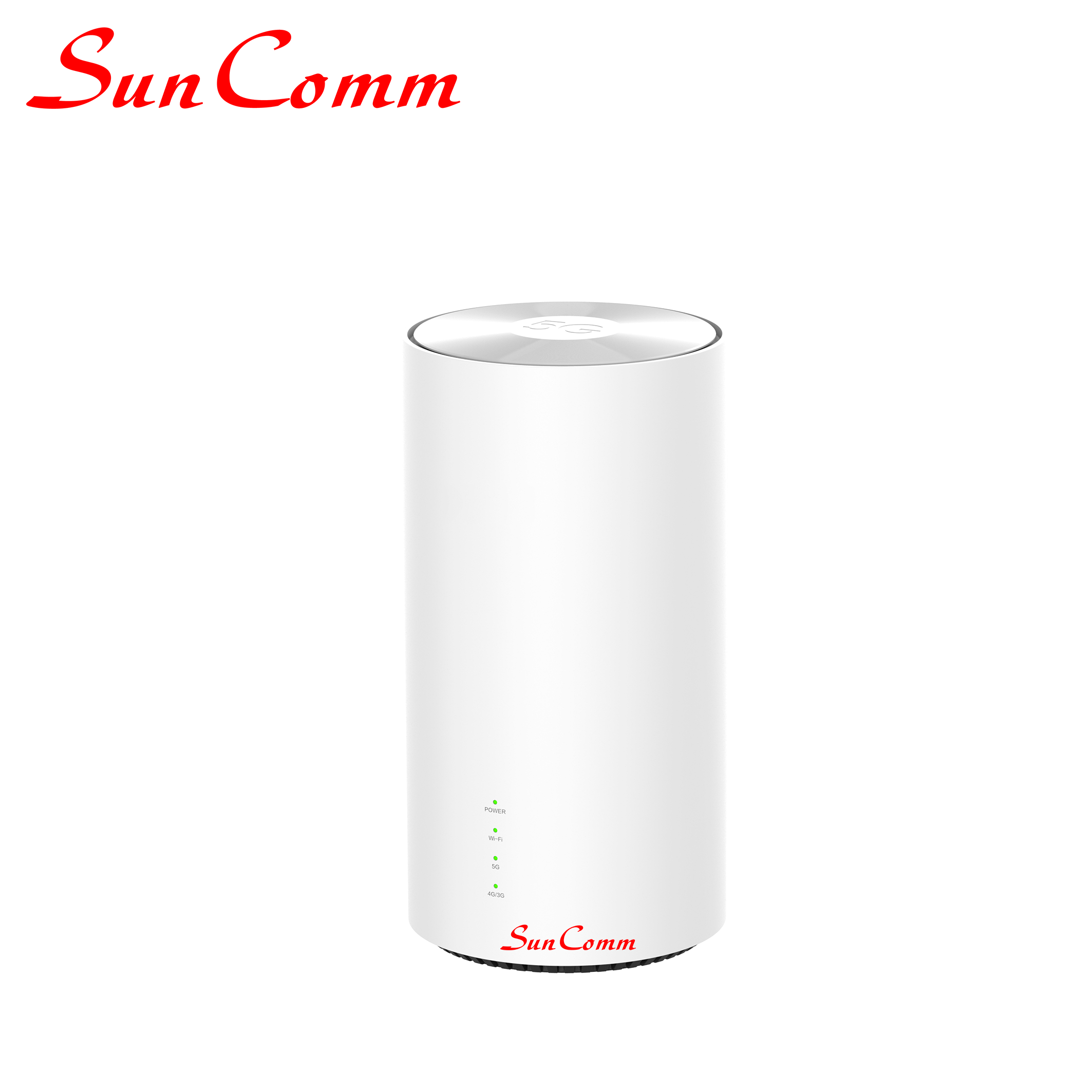

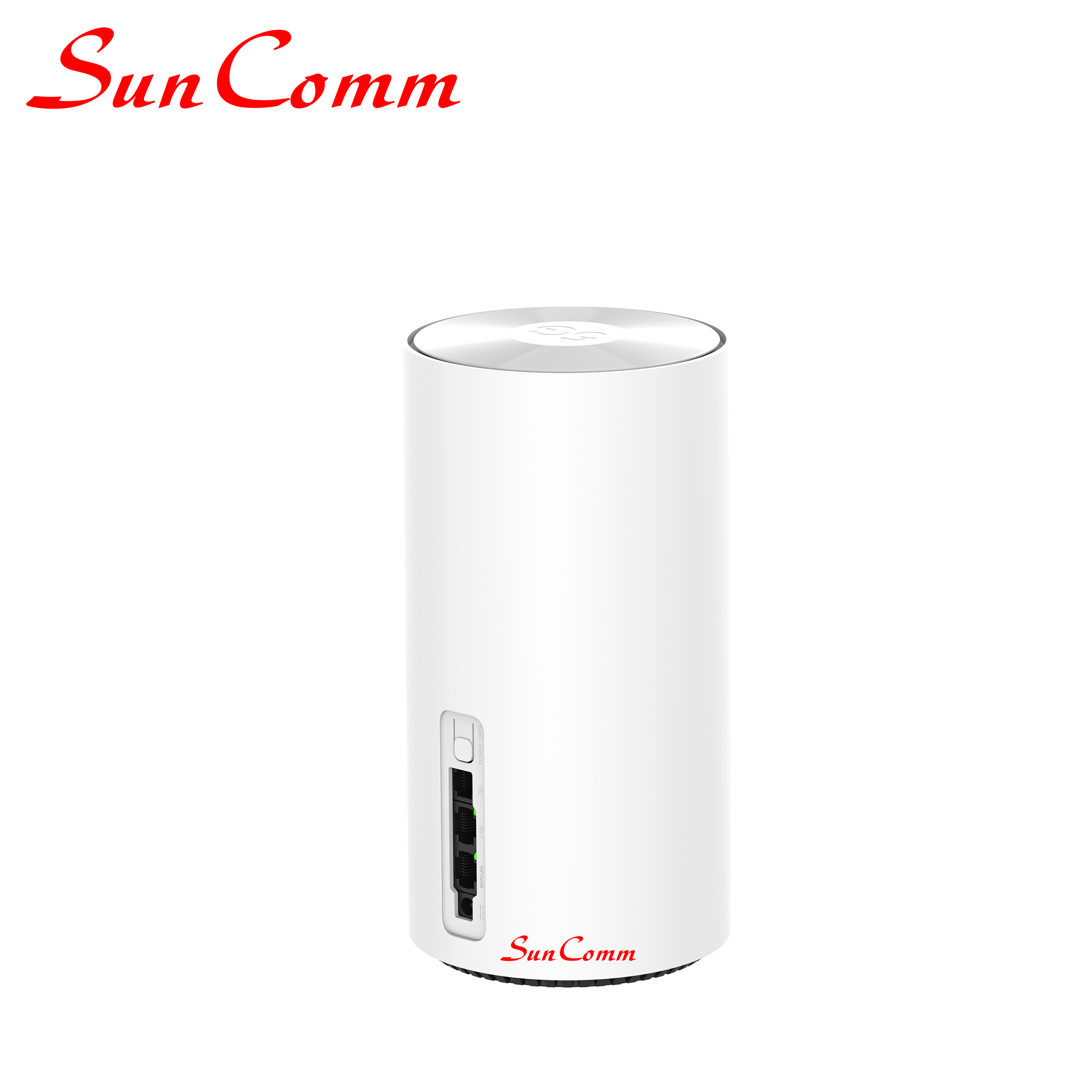

SC-5088T-5GR WiFi 7 5G NR Indoor CPE Router

5G CPE indoor Router WiFi 5G NR WIFI 7

Model:SC-5088T-5GR
SC-5088T-5GR is a high-performance WiFi 7 5G NR Indoor CPE Router designed for home, enterprise, and fixed wireless access (FWA) applications. Powered by the Qualcomm SDX72 platform and compliant with 3GPP Release 17, it delivers ultra-fast 5G connectivity with enhanced WiFi capacity, enabling stable, high-speed internet access for multi-user environments.
Download Add to inquiry
High-Performance WiFi 7 5G NR Indoor CPE Solution

The SC-5088T-5GR (WiFi 7) is an advanced 5G NR indoor CPE router integrating cellular NR/LTE connectivity with high-speed Ethernet and next-generation WiFi 7 technology. It provides flexible broadband access via 5G SA/NSA or wired Ethernet, making it ideal for home broadband replacement, small offices, and enterprise network deployments.

Built on the Qualcomm SDX72 chipset, the SC-5088T-5GR supports 3GPP Release 17, delivering download speeds of up to 4.1Gbps and uplink speeds of up to 900Mbps. The device ensures reliable performance for bandwidth-intensive applications such as video streaming, cloud services, online gaming, and remote work.

Next-Generation WiFi 7 Performance

Equipped with the latest Qualcomm WiFi 7 solution, the SC-5088T-5GR supports 2.4GHz and 5GHz DBDC with aggregate WiFi speeds of up to 7.2Gbps. The router also supports EasyMesh R4, allowing seamless mesh networking with other compatible routers to expand coverage and improve user experience in larger indoor environments.

Flexible Connectivity & Multi-User Support

Designed for multi-device usage, the SC-5088T-5GR can support simultaneous connections for laptops, smartphones, IP cameras, multimedia players, and IoT devices. With 5G NR, LTE, and UMTS backward compatibility, it ensures stable connectivity across different network conditions and regions.

Optional features such as VoIP / VoLTE / VoNR via RJ11 port, NFC for quick WiFi pairing, and external antenna support make the device suitable for telecom operators, ISPs, and system integrators looking for a scalable indoor 5G CPE solution.

Key Applications

  • 5G Fixed Wireless Access (FWA)

  • Home broadband replacement

  • Small office and enterprise networking

  • Temporary or remote site connectivity

  • Multi-user indoor wireless deployment

Technical Standard

Frequency (NA)



NA version:

[5G NR]: n2/n5/n12/n13/n14/n25/n26/n29/n7/n41/n48/n66/n71/n77/n78

[LTE]: B2/B4/B5/B12/B13/B14/B25/B26/B29/B7/B41/B42/B43/B48/B66/B71

[UMTS]: B1/B2/B4/B5/B8



Frequency (EA)

EA version:

[5G NR]: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78/n79

[LTE]: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43/B71

[UMTS]: B1/B3/5/8N

Wi-Fi7

2.4GHz & 5GHz, Wi-Fi2*2 MIMO, 802.11 a/b/g/n/ac/ax/be, DBDC be5000

Esay Mesh R4 is supported

5G SA NSA Mode

Maximum Data Throughput

5G NR: (DL/UL) 4.1Gbps/900Mbps

LTE: (DL/UL) 1.6Gbps/200Mbps

5G LTE

3GPP Release 17

4Gbps/0.9Gbps

Receive Diversity

Support Receive Diversity

MIMO

DL 4x4 MIMO

Chipset

Qualcomm SDx72

WIFI

Qualcomm QFW7124

Memory

Modem: 8Gb LPDDR4

Power Consumption

<24W

Power Voltage

DC: 12V/1.5A

USIM/SIM

4FF SIM card

support SIM/USIM/UIM, standard 6 PIN SIM card interface

support 3V SIM card and 1.8V SIM card; internal push-pull SIM slot

LED

Power Indication LED, Wi-Fi Indication LED, 5G Indication LED, 4G Indication LED

Antenna

LTE/NR Antenna*10, Wi-Fi*2, N41/77/78/79 8dBi High Gain, Smart antenna selection, 2*TS-9 external antenna is optional (support band n38/n40/n41/n77/n78),

Wi-Fi 4 antenna is optional

Buttons

Power, Reset, WPS (Easy Mesh)

Ethernet

1 x WAN + 1 x LAN

2 x 1000Base automatic adaptive port (default)

1 x 1Gbps + 1 x 1Gbps port (default)



VOICE

1 x RJ11, support VoIP/VoLTE/VoNR (optional)

Connect to the telephone

Reset

Pinhole

NFC

Support NFC to connect Wi-Fi

ESD

ESD Protection circuit; Contact ± 8KV, Air±10KV

Operating Temperature

Normal: 0°C ~ +45°C



Storage Temperature

–20°C ~ +70°C

Humidity

5% ~ 95%
